Twitter| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Size | 15-30mm, 30-45mm, 45-60mm, 60-75mm, 75-90mm, 90-105mm, Upto 180mm Diameter & 500mm Length. |
| Type | High Tensile Brass Rods & Sections |
| Material | Brass, High Tensile Brass |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details

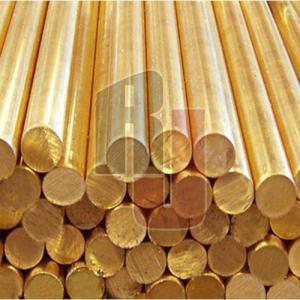

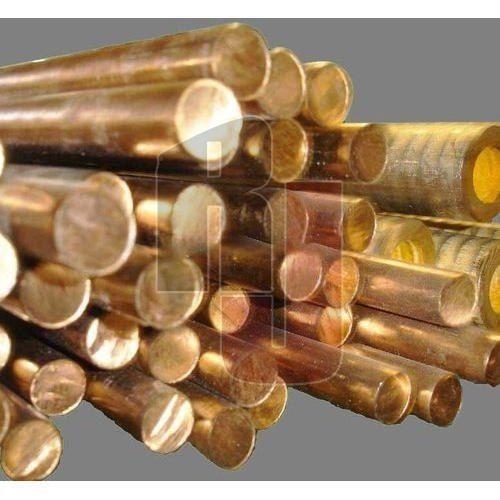

We are manufacturing High Tensile Brass Rods & Sections as per IS:320-1980 Specification. In our Foundry, we are casting High Tensile Brass Rods & Sections in dimensions ranging from 30mm to 180mm in Diameter & Upto 500mm in Length. The Condition of delivery of High Tensile Brass is as manufactured and proof machined and sometimes annealing them to meet the properties as required by the Buyer. High Tensile Brass is a Copper Zinc Alloy which combines with Additives to increase the Tensile Strength over that of the simple binary Copper Zinc Brass. The Chemical Composition of the alloys under Grades as per specification are tabulated as below: -
|
Constituent |
Percentage Composition |
|
|
|
Grade HT-1 |
Grade HT-2 |
|
Copper Plus Incidental Nickel |
56.0 – 60.0 |
56.0 - 61.0 |
|
Tin |
0.2 – 1.0 |
1.0 Max |
|
Lead |
0.20 – 1.5 |
0.50 – 1.5 |
|
Iron |
0.20 – 1.25 |
0.20 – 1.5 |
|
Manganese |
0.25 – 2.0 |
0.50 – 2.0 |
|
Aluminium |
0.20, Max |
0.3 – 2.0 |
|
Antimony |
0.02 Max |
0.02 Max |
|
Total of Other Elements |
0.50 Max |
0.50 Max |
|
Zinc |
Remainder |
Remainder |
Our Firm is capable of producing High Tensile Brass Solid & Holow Rods.
