Product Details

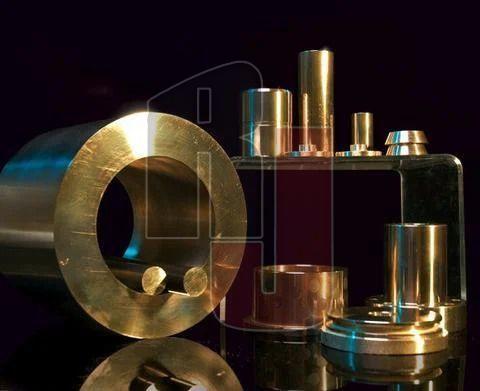

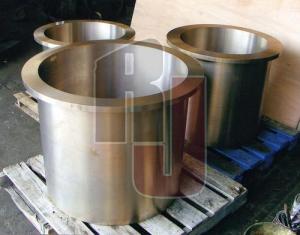

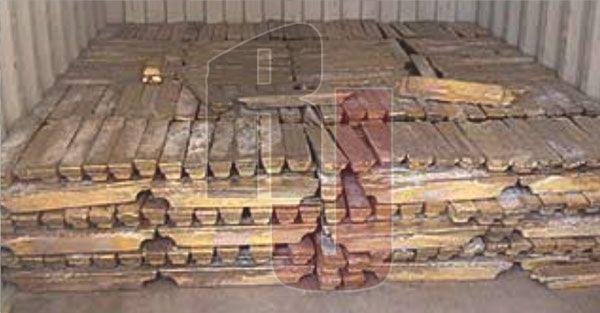

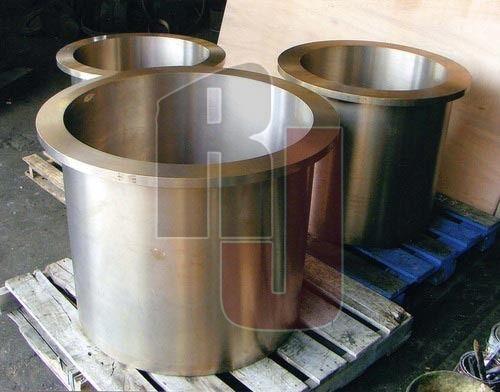

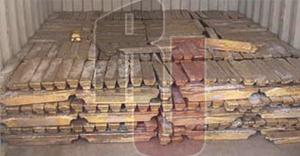

In our Firm, we are casting Tin Bronze Ingots & Castings as per IS:306-1983 Or Latest Specification. We are casting Ingots weighing between 7Kg - 10Kg & 12Kg - 15Kg which are used for Remelting & Alloying For Producing Finished Products in Large Scale Industries. The Castings Prepared by us range from weights of 0.300 Kg to 150 Kg in weight & are required in various applications. Castings are supplied with reasonable tolerances due to which they are machined again at the End User's Site. It is ensured that castings are clean and free from harmful defects such as blow holes and gas cavities. Tin Bronze Castings are utilized in movable bridge components, turntables for bridges and other structures for fixed and expansion bearings with slow and intermittent movement with heavy Loads. They are found in Gear, High Strength Bushing. This alloy is used in pump impellers, piston rings, steam fittings and valve bodies.
|
Constituents |
Percentage Composition |
|
|
|
Ingots |
Castings |
|
Tin |
9.5-10.5 |
9.5-10.5 |
|
Zinc |
1.75-3.25 |
1.5-3.0 |
|
Lead |
1.5 Max |
1.5 Max |
|
Nickel |
1.0 Max |
1.0 Max |
|
Iron |
0.15 Max |
0.15 Max |
|
Aluminium |
0.01 Max |
0.01 Max |
|
Silicon |
0.02 Max |
0.02 Max |
|
Bismuth |
0.03 Max |
0.03 Max |
|
Total Impurities, Max (Includes Iron, aluminium, arsenic, antimony, silicon, bismuth) |
0.50 Max |
0.50 Max |
|
Copper |
Remainder |
Remainder |
