Gun Metal Bushing
| Business Type | Manufacturer, Exporter, Supplier, Importer |
| Type | Linear Bush Bearing |
| Material Grade | BS |
| Corrosion Resistance | Yes |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details

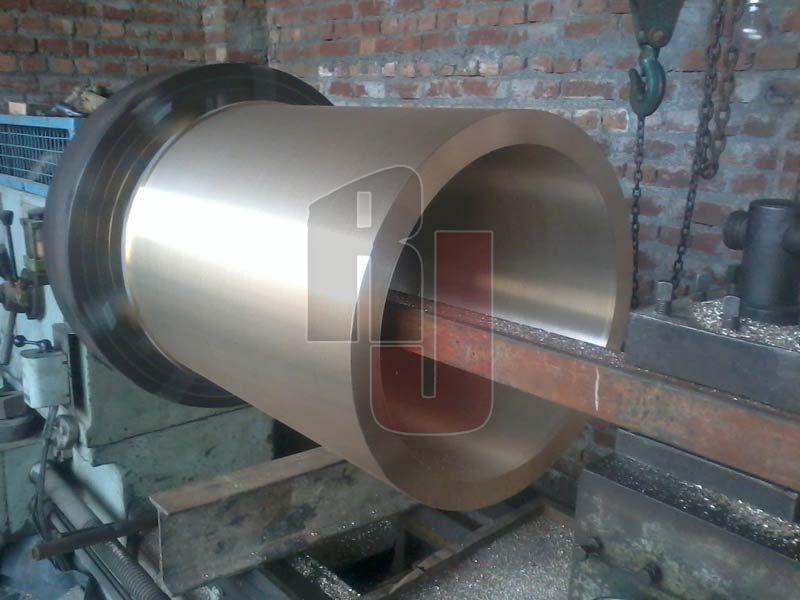

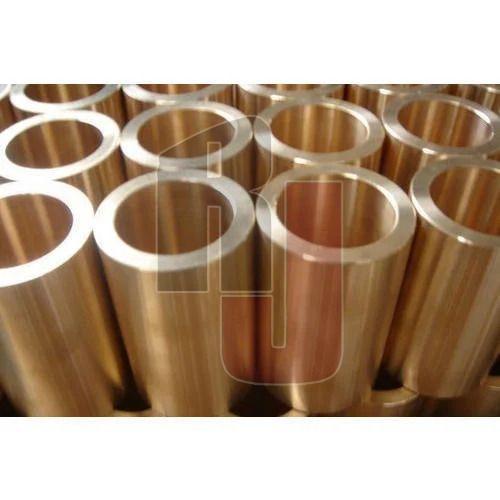

Gun Metal Bushes manufactured by us are as per IS:10742-1983 Specification. Bushes manufactured by us range from Nominal Bore of 10mm to 500mm & from there to greater than 1 Meter which come in form of rings. Bushes are manufactured as cast and then proof machined with machinable tolerances to be supplied to the end user. In our Foundry, Bushes are manufactured as per three grades as tabulated below: -
|
Constituents |
Percentage Composition |
||
|
|
Grade -1 |
Grade - 2 |
Grade - 3 |
|
Tin |
4.0-6.0 |
6.0-8.0 |
9.5-10.5 |
|
Zinc |
4.0-6.0 |
1.5-3.0 |
1.75-2.75 |
|
Lead |
4.0-6.0 |
2.5-5.5 |
0-1.5 |
|
Nickel |
2.0 Max |
2.0 Max |
1.0 Max |
|
Iron |
0.35 Max |
0.35 Max |
0.15 Max |
|
Aluminium |
0.01 Max |
0.01 Max |
------------- |
|
Total Impurities |
0.8 Max |
0.7 Max |
0.5 Max |
|
Copper |
Remainder |
Remainder |
Remainder |
