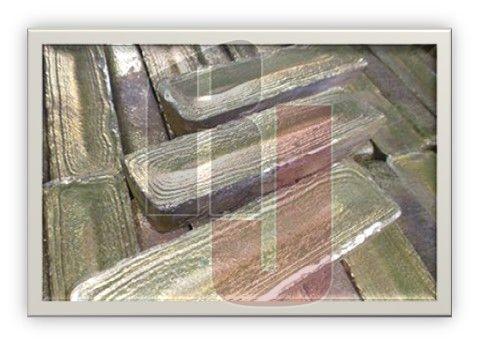

High Tensile Brass Ingots And Castings

600.00 - 815.00 / Kilogram

300.00 Kilogram (MOQ)

Business Type Manufacturer, Exporter, Supplier, Importer
Country of Origin India

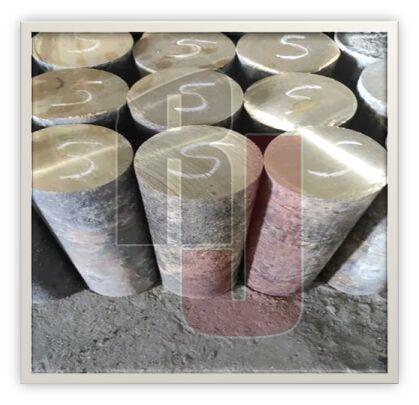

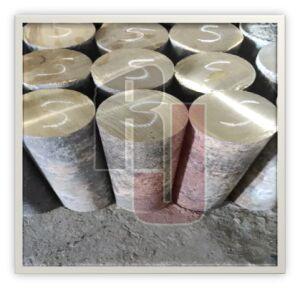

Size Rods & Bushes Are Cast Up To A Length Of 500mm
Type Cast As Ingots & Castings As Per Drawing & Application
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Material
Aluminium, Iron & Manganese
Shape

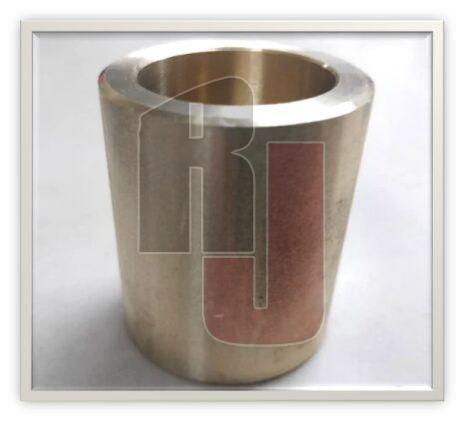

Rectangular, Round, Bush Bearing
Thickness
Greater Than 10mm
Color
Yellowish Grey
Brand Name
RJMI
Port
Kolkata Port
Payment Terms
L/C, D/A, D/P, T/T, Other
Delivery Time
As Per Order & Quantity of Manufacture
Packaging Details

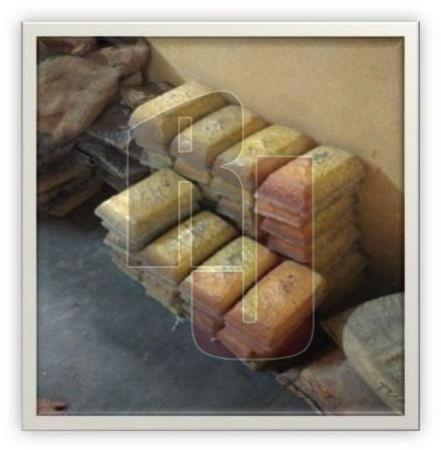

Ingots are packed in Gunny Bags & Loaded Onto Containers For Ocean Freight While Only Packed In Jute Clothes For Safest Transportation By Road, Railways Or Air.

High Tensile Brass Ingots & Castings are cast as per IS:304-1981 Reaffirmed 2006. This standard covers the requirements for 2 Grades of High Tensile Brass Ingots for remelting purposes and castings. The Ingots cast by us are of uniform quality and reasonably free from slag, dross and other harmful contaminations. The Castings prepared are free from harmful inclusions and cracks. High Tensile Brass Ingots are remelted for producing castings for Gas Valves, Fittings, Fasteners, Pump Trim, Gears, Locks, Heavy Duty Electrical Connectors, Transmission Components, Marine Hardware, Safety Tools & Decorative Metal Work. High Tensile Brass Castings are used extensively for wear resisting applications because of their strength. It is also used for marine propellers, pump impellers and valve bodies due to their high corrosion resistance. High tensile Brass is alloyed with aluminium, manganese & silicon which makes it as hard as aluminium bronze and renders easy to process characteristics and machinability. The material when analyzed in accordance with IS:3685-1966 shall have the chemical composition as follows: -





     Constituent

      Grade HTB-1

                    Grade HTB-2

Copper Plus Incidental Nickel, Min

             55

                               55

Manganese, Max

             3.0

                               4.0

Aluminium

           0.5-2.5

                           3.0-6.0

Iron

           0.7-2.0

                           1.5-3.25

Tin, Max

               1.0

                              0.20

Lead, Max

               0.50

                              0.20

Silicon, Max

               0.10

                              0.10

Total of Other Elements, Max

               0.20

                              0.20

Zinc

           Remainder

                         Remainder
